About This Item:

• Unique wax mold design allows you to observe curved and uneven surfaces clearly
• This portable LED microscope uses a special wax mold that fits perfectly into corners and recesses that are difficult to observe on flat surfaces.
• Allowing you to see the fine parts clearly
• Precise magnification with a maximum of 15x zoom function.
• Switch the magnification to 7x, 11x, and 15x depending on the object
• Capture and save function to easily share data.
• Observed images can be stored on a microSD card for sharing and reporting materials in the team, making your business more efficient.
• You can also send data directly to your smartphone or computer via cable
• Connect to a computer to see the large screen.
• Connect to a computer using the included USB cable. You can use it as a camera in the camera app
• With up to 15x magnification and shooting/saving functions, it alleviates concerns about visual inspections. It allows for efficient recording of quality control and parts inspections.

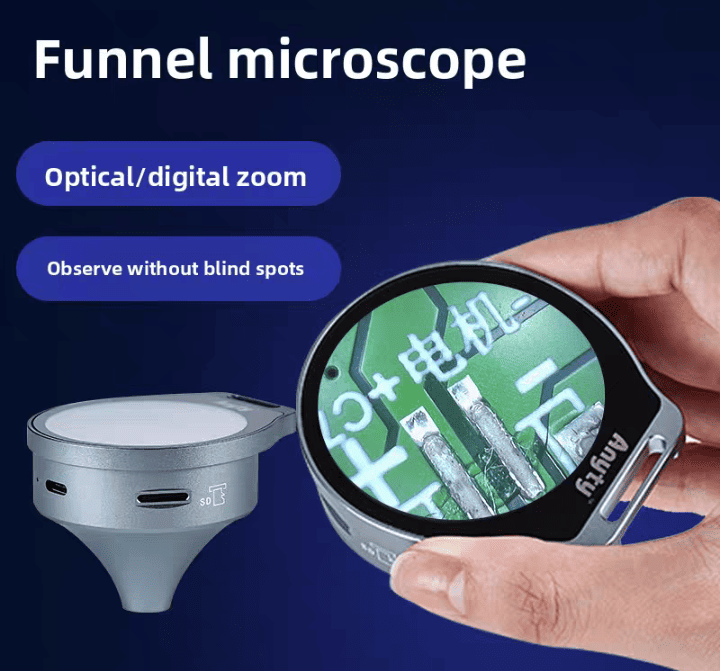

• "Funnel-shaped" design The observation section easily adheres to uneven surfaces and curves, allowing for precise focus from an angle.
• It is also effective for observing parts and materials that are not flat.
• Up to 15x high magnification (switchable between 7/11/15x) It is equipped with magnification capabilities that capture small scratches, fine abnormalities, and changes in detail.
• 2.1-inch LCD monitor (resolution 480×480) included With a monitor that allows you to check the image on the spot, immediate observation and photography are possible without a PC connection.
• USB connection compatible, can also be used as an external camera for PC Using a USB cable, you can display the magnified image on the PC screen, making it convenient for reporting and sharing.
• Shooting and saving functions included (compatible with microSD cards) You can take photos with a single shutter button, and the data is saved to a microSD card. It can be imported to a PC or smartphone.
• Equipped with LED (3 white lights / 3 UV lights) + easy-to-use design It supports switching between white and UV light sources, accommodating changes in observation conditions due to darkness or materials. It also considers usability, such as automatic shut-off after 5 minutes of inactivity.

Information:

• Product Name: Portable LED Microscope Magic Loupe R
• Model Number: 3R-MJL03
• JAN: 4589557956320
• Size: Approximately 70.5×61×50mm
• Weight: Approximately 106g
• Monitor: 2.1 inches Monitor
• Resolution: 480×480
• Sensor: 1/4 inch CMOS Sensor
• Sensor Resolution: 1280×720 (dependent on monitor resolution)
• Focal Length: 13mm to 15mm
• Optical Zoom: 7x
• Digital Zoom: 1.6x / 2.1x
• Optical × Digital Zoom: 11x / 15x
• Light Source: 3 White LEDs, 3 UV LEDs
• Battery: 3.7V 300mAh
• Usage Time: Approximately 60 minutes (power off after 5 minutes of inactivity)
• Charging Time: Approximately 40 minutes

Applications/Examples of Results:

• Parts Inspection and Quality Control It is suitable for checking fine scratches, foreign matter contamination, and surface irregularities on the manufacturing line. Defective areas that are easily overlooked by the naked eye can be confirmed with magnification up to 15 times.

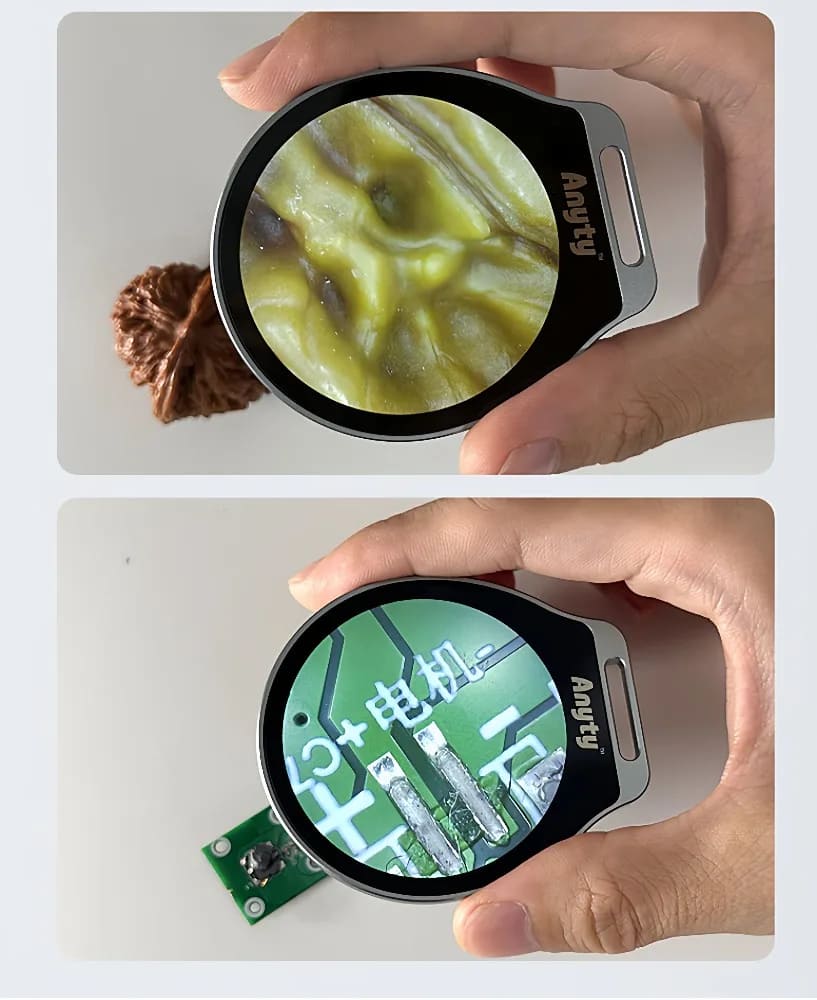

• Observation of Electronic Components and Circuit Boards Utilized for checking soldering conditions of printed circuit boards and electronic components, as well as for detecting minute contact failures and fine damages. It can be clearly confirmed even in dark places with an LED light.
• Material Evaluation and Surface Analysis Observes fine cracks, deformations, and wear conditions on the surfaces of materials such as resin, metal, and rubber. It can also be used as support for research and development or durability testing.
• Verification of Assembly Processes Confirms the position of parts and assembly accuracy during assembly. Its palm-sized design makes it easy to bring to the site and conduct partial checks.
• Recording of Product Traceability Since observation footage can be captured and saved, it is useful for creating records and reporting documents for each process. Data transfer to PCs or smartphones is also easy.
